Inter-chord attributes

In addition to the chord attributes that can appear in the square brackets before time and pitch information, there are a few attributes that are specified after the time and pitch information. These are attributes that start or end on the chord but also affect other chords. There are several such attributes:

If several of these are specified on a single chord, they may be in any order, separated by commas.

Chord ties

If all notes in a chord are to be tied to the following chord, the keyword "tie" can be placed at the end of the chord. As was mentioned earlier, individual notes can be tied using a "~" symbol. Thus:

ceg tie;

is equivalent to
c~e~g~;

The word 'tie' may be preceeded by the word 'dotted' or 'dashed' to produce dotted or dashed ties, otherwise normal, solid ties are drawn. The word 'tie' may be followed by the word 'up' or 'down' to specify the direction of each curve's bulge. If neither is specified, Mup will determine an appropriate direction, so you only need to give a direction if you wish to override Mup's choice.

Chord slurs

The keyword "slur" can be placed at the end of a chord to indicate that each note in the chord is to be slurred to the corresponding note in the following chord. In other words, the top note of the chord is slurred to the top note of the following chord, the second from the top note in the first chord to the second from the top note in the second chord, etc. Thus the following 2 measures give equivalent output:

1: 2f<d> a<b> c+<d+>; dbd+;
bar

1: 2fac+ slur; dbd+;
bar

Picture of Mup output

The chord with the "slur" keyword and the chord that follows it must have the same number of notes. The word 'slur' may be preceeded by the word 'dotted' or 'dashed' to produce dotted or dashed slurs, otherwise normal, solid slurs are drawn. The word 'slur' may be followed by the word 'up' or 'down' to specify the direction of each curve's bulge. If neither is specified, Mup will determine an appropriate direction, so you only need to give a direction if you wish to override Mup's choice.

Custom beaming

Normally, notes of eighth or shorter duration are automatically beamed according to the specification of the "beamstyle" parameter. Occasionally, you may wish to override the default beaming style for a particular situation. This is done using the "bm" and "ebm" keywords. The "bm" (short for "beam") is placed at the end of the chord which is the first to be beamed. The "ebm" (short for "end beam") is placed at the end of the last chord. Both chords must be in the same measure. If there is any custom beaming specified for a given voice in a given measure, the default beamstyle is turned off for that voice for the entire measure, meaning that only what you explicitly specify to be beamed will be beamed. An example:

// The d, e, and f will be beamed together,
// but other 8th notes will not be.
1: 4c; 8; d bm; e; f ebm; g; a;
bar

// First two chords beamed together.
// Second chord is tied to third chord.
1: 8.fa bm; 16gc+ tie, ebm; 2; 8a; g;
bar

Picture of Mup output

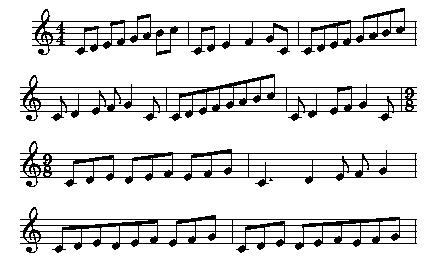

In the absence of custom beaming, Mup will beam notes together using the beamstyle parameter, if that parameter is set. The beamstyle parameter is a list of time values that add up to a measure. Each time value tells how many chords to beam together. For example, a 2 means to beam a half note worth of chords together, whereas 1.. would indicate that a double dotted whole note worth of chords should be beamed together. Here are some examples of how the beamstyle parameter works.

// beam each quarter note worth of notes together,
// breaking the beaming at each quarter note boundary
score beamstyle = 4,4,4,4
music
1: 8c;d;e;f;g;a;b;c+;
bar
1: 8c;d;4e;f;8g;c;
bar

// beam each half note worth of notes together,
// breaking the beaming at each half note boundary
score beamstyle = 2,2
music
1: 8c;d;e;f;g;a;b;c+;
bar
// the middle two eighth notes will not be beamed together,
// because they are on opposite sides of the half note boundary
1: 8c;4d;8e;f;4g;8c;
bar

// beam each whole note worth of notes together
score beamstyle = 1
music
1: 8c;d;e;f;g;a;b;c+;
bar
1: 8c;4d;8e;f;4g;8c;
bar

// in 9/8 time, beam each dotted quarter note worth of notes together
score time = 9/8 ; beamstyle = 4., 4., 4.
music
1: 8c;d;e;d;e;f;e;f;g;
bar
// the eight notes will not be beamed together,
// because they are on opposite side of the dotted quarter boundary
1: 4.c;4d;8e;8f;4g;
bar

// in each measure, beam the first dotted half worth of notes together,
// then beam the remaining dotted quarter worth of notes together
score beamstyle = 2., 4.
music
1: 8c;d;e;d;e;f;e;f;g;
bar

// in each measure, beam the first dotted quarter worth of notes together
// then beam the remaining dotted half worth of notes together
score beamstyle = 4., 2.;
music
1: 8c;d;e;d;e;f;e;f;g;
bar

Picture of Mup output

Normally Mup will break beams whenever it encounters a rest, but if you include rests inside custom beams or specify an "r" at the end of the beamstyle parameter, it will beam across rests of eight note or shorter duration.

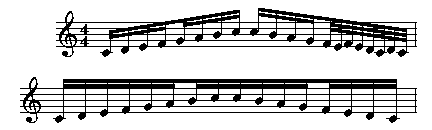

Sometimes, if there are many short notes beamed together, you may wish to subdivide the beams into smaller groupings, where the outer, or primary beam remains unbroken, but the inner, or secondary beams are broken periodically. When using custom beaming, this is specified by "esbm" ("end subbeam" or "end secondary beam") on the chord after which you want the break to occur. When using beamstyle, parentheses are used to indicate what sets of secondary beams are to be included in a given outer beam.

score
beamstyle=(4,4),(4,4)
music

// use the beamstyle parameter
1: 16c;d;e;f; g;a;b;c+; c+;b;a;g; 32f;e;f;e;d;c;d;c;
bar

// use custom beaming
1: 16c bm;d;e;f;g;a esbm;b;c+;c+;b;a;g esbm;f;e;d;c ebm;
bar

Picture of Mup output

Cross-staff beams

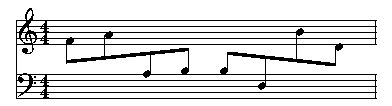

In keyboard music, sometimes notes on adjacent staffs are beamed together. Mup will do this with a variation on custom beaming. A bm and ebm must be specified on both staffs, and in each case the bm is followed by a qualifier: on the first of the two staffs, "bm with staff below" must be specified, while on the second staff you use "bm with staff above". For every point in time for the duration of the beam, one staff must have a chord with notes in it, and the other staff must have a space chord. (This is different than ordinary, non-cross-staff beams, where spaces are not allowed). The two "bm" marks must occur at the same time in the measure. Similarly, the two "ebm" marks must occur at the same time in each staff. Grouping subbeams using "esbm" is not supported on cross-staff beams.

Some examples:

1: 8f bm with staff below; a; 4s ebm; 4s bm with staff below; 8b; d ebm;
2: 4s bm with staff above; 8a; b ebm; b bm with staff above; d; 4s ebm;
bar

Picture of Mup output

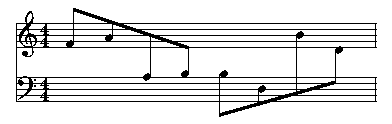

Normally the beam will be drawn between the staffs, but you can force the beam to be above or below all the notes by specifying a stem direction. You can also adjust the appearance of the beam by giving stems lengths for the first and last chords in the beam.

1: [up]8f bm with staff below;a;4s ebm;4s bm with staff below;8b;[len 11]d ebm;
2: 4s bm with staff above;8a;b ebm;[down;len 14]b bm with staff above;d;4s ebm;
bar

Picture of Mup output

If a cross-staff beam includes tuplets, the tuplet numbers will not be printed. You would have to print them yourself using either a "print" statement or an "ital" statement.

It is possible for cross-staff beams to collide with other items, such as dynamic marks. In these cases, you may need to move the other items. Another thing you might try is specifying stem lengths to alter where the beams get placed, or printing a blank string between the staffs to cause them to get placed further apart. Slashes are not allowed on cross-staff beams.

Mup doesn't directly allow cross-staff grace note beams. However, you may be able simulate the effect by using cue note chords along with invisible time signature changes and possibly invisible bar lines. See the section on "Special uses of invisbar" for more details.

Alternation

Alternation pairs can be specified using "alt N" where N is a number. An alternation pair is two chords that are to played alternately in quick succession but are not written out as such. This is shown by drawing N beams between the stems of the chords. The note value you specify for each chord must be the same, and the time value of each must equal the time taken by the pair. For example, if the pair takes up the time of a half note, each chord would be a half note. Here is an example:

// Alternate between c and c an octave
// higher. Total time taken is that of
// a half note. Two "beam"-like lines
// will be drawn to show the alternation.
1: 2c alt 2; 2c+;2g;
bar

Picture of Mup output

Alternation is not allowed on cross-staff beams.
